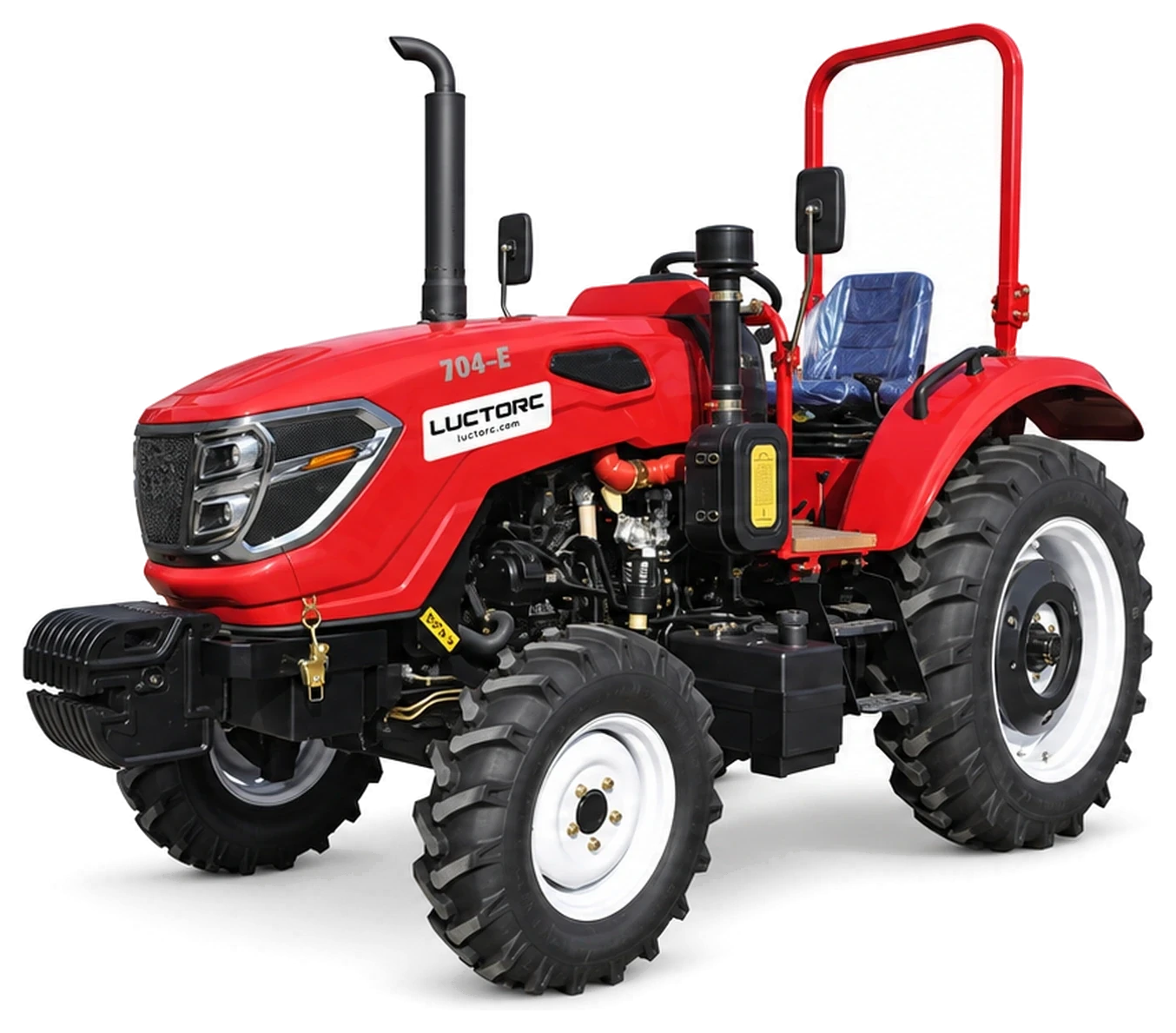

704-E Open Station Wheeled Tractor

Tractors 704-E Series

704-E Open Station

704-E Open Station Wheeled Tractor

Wheeled Tractor

The 704-E on an open station: a turbocharged 52.1 kW E-series tractor for mid-size field work.

Open station · E series · 52.1 kW

Rated power
52.1 kW
Engine model
Dongfanghong YANGDONG 4100, turbocharged
Machine mass
1,950 kg
Request a quote WhatsApp
  • Quoted on inquiry, with the full specification in writing.
  • Stock arrives from the factory at our 2000 Plaza, Mombasa Road showroom, where you can see and test it before delivery is arranged.
  • Wear parts — film, blades, belts, rollers and dies — supplied for the life of the machine.

Ask for the 704-E Open Station technical sheet and working video

Technical data

Full specification

Every figure the factory publishes for this model.

704-E Open Station — published figures

Rated power 52.1 kW
Engine model Dongfanghong YANGDONG 4100, turbocharged
Rated engine speed 2400 rpm
Fuel Diesel
Overall length 3.50 m
Overall width 1.50 m (adjustable)
Overall height 1.96 m
Front wheel spacing 1.20 m
Rear wheel spacing 1.20 m
Wheelbase 1.92 m
Ground clearance 320 mm
Machine mass 1,950 kg
Tyres – front / rear 7.50-16 / 11.2-28
Optional tyres 8.30-20 / 12.4-28
Steering system Hydraulic steering
Clutch system 10 in single-acting; 9 in dual-acting (500)

Confirmed at quotation

Voltage and frequencySet to your market at order
PackingExport crate dimensions and gross weight
Container loadingMachines per 20 ft / 40 ft container
Lead timeFrom deposit to shipment
Spare and wear partsFirst set quoted with the machine

No price is published on this site. The machine, its die or wrapping specification, the parts included and the shipping arrangement decide the figure, so every model is quoted in writing on inquiry.

Ordering

What a quotation for the 704-E Open Station covers

Machinery bought across a border is bought on the paperwork. All three are stated in writing before you commit to anything.

1

Specification

Installed power and voltage, bale size and weight, output, machine weight and overall dimensions. Anything shown here as on request is confirmed at this point, not left open.

2

Packing and shipping

Packing method, crate dimensions and gross weight, machines per container, port of loading, and the lead time from deposit to shipment.

3

Terms

Price validity, payment terms, and the wear parts we recommend ordering with the machine.

Working videos, technical sheets and packing photographs for the 704-E Open Station are sent with the quotation.
