Full specification

Every figure the factory publishes for this model.

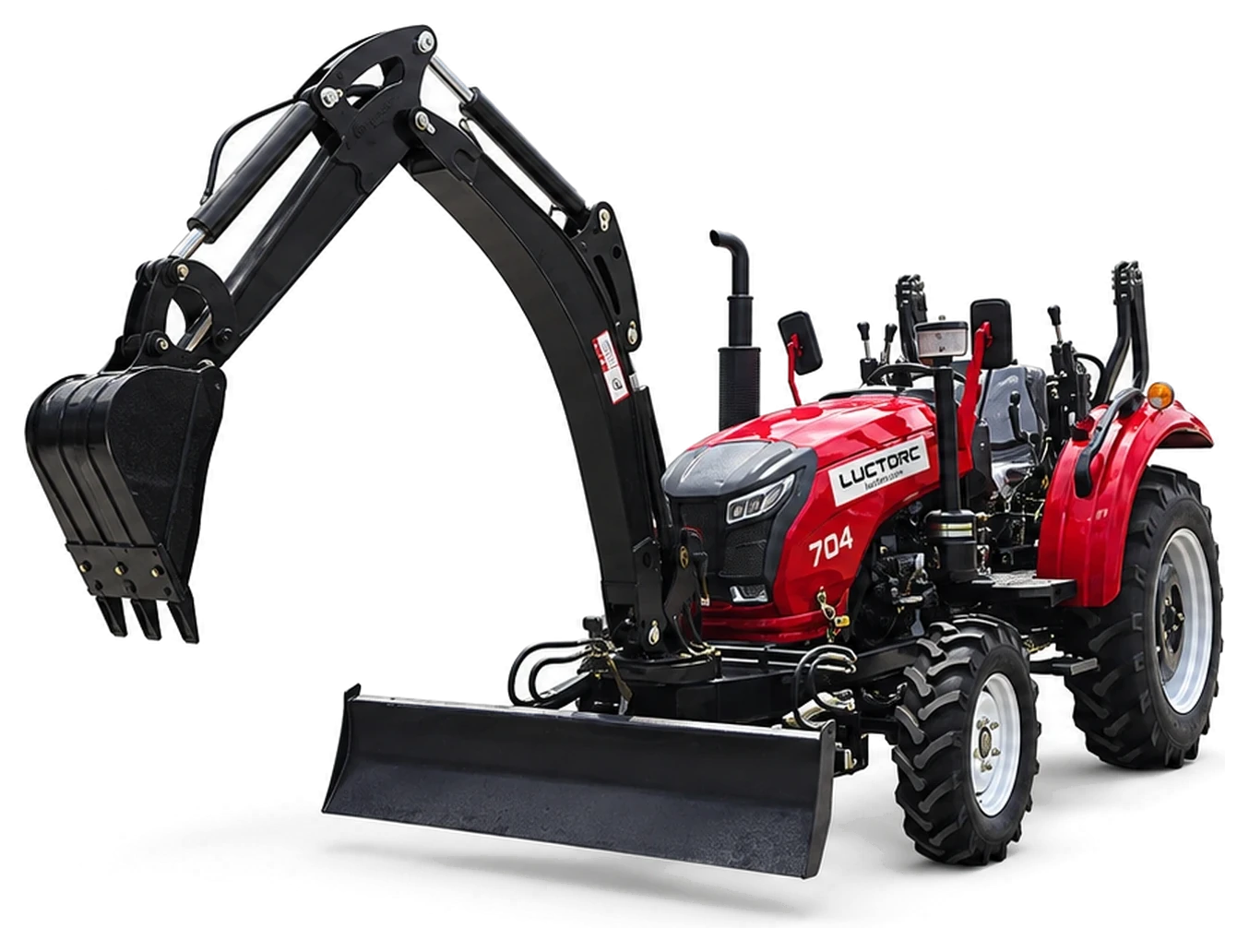

704 Excavator — published figures

Specifications for the 704 Excavator Wheeled Tractor
Rated power	51.5 kW
Engine model	Weifang 490, turbocharged
Rated engine speed	2400 rpm
Fuel	Diesel
Overall length	4.30 m
Overall width	1.50 m (adjustable)
Overall height	2.01 m
Front wheel spacing	0.96–1.30 m
Rear wheel spacing	0.96–1.30 m
Wheelbase	1.80 m
Ground clearance	320 mm
Machine mass	2,270 kg
Tyres – front / rear	7.50-16 / 11.2-28
Optional tyres	8.30-20 / 12.4-28
Steering system	Hydraulic steering
Clutch system	10 in single-acting; 9 in dual-acting (500)

Confirmed at quotation

Details confirmed on the quotation
Voltage and frequency	Set to your market at order
Packing	Export crate dimensions and gross weight
Container loading	Machines per 20 ft / 40 ft container
Lead time	From deposit to shipment
Spare and wear parts	First set quoted with the machine

No price is published on this site. The machine, its die or wrapping specification, the parts included and the shipping arrangement decide the figure, so every model is quoted in writing on inquiry.

Ordering

What a quotation for the 704 Excavator covers

Machinery bought across a border is bought on the paperwork. All three are stated in writing before you commit to anything.

1

Specification

Installed power and voltage, bale size and weight, output, machine weight and overall dimensions. Anything shown here as on request is confirmed at this point, not left open.

2

Packing and shipping

Packing method, crate dimensions and gross weight, machines per container, port of loading, and the lead time from deposit to shipment.

3

Terms

Price validity, payment terms, and the wear parts we recommend ordering with the machine.

Working videos, technical sheets and packing photographs for the 704 Excavator are sent with the quotation.

Request a quote

Also in this line

Other Tractors models

Same figures in the same order on every card.

504/804 Low-Profile

Rated power	36.8 kW (504) / 58.8 kW (804)
Engine	Weihang power
Machine mass	1,400 kg
Ground clearance	230 mm

Rated power	36.8 kW
Engine	Dongfanghong YANGDONG 4100
Machine mass	1,900 kg
Ground clearance	320 mm

Rated power	33.1 kW
Engine	25GB “in the cloud”
Machine mass	2,350 kg
Ground clearance	350 mm

Rated power	52.1 kW
Engine	Dongfanghong YANGDONG 4100, turbocharged
Machine mass	1,950 kg
Ground clearance	320 mm

Rated power	44.2 kW
Engine	Weifang 495
Machine mass	1,580 kg
Ground clearance	320 mm

Rated power	58.8 kW
Engine	Weifang 495 / Laidong 495, turbocharged
Machine mass	1,600 kg
Ground clearance	320 mm

Rated power	66.2 kW
Engine	Weifang 4102
Machine mass	1,940 kg
Ground clearance	320 mm

Rated power	73.5 kW
Engine	Weifang 4102, turbocharged
Machine mass	1,960 kg
Ground clearance	330 mm

Rated power	88.2 kW
Engine	Weifang 4102, turbocharged / intercooled
Machine mass	2,800 kg
Ground clearance	400 mm

Rated power	103 kW
Engine	Weifang 6108
Machine mass	3,500 kg
Ground clearance	470 mm

Rated power	132.3 kW
Engine	Weifang 6108, turbocharged
Machine mass	5,200 kg
Ground clearance	400 mm
