Full specification

Every figure the factory publishes for this model.

1204 Open Station — published figures

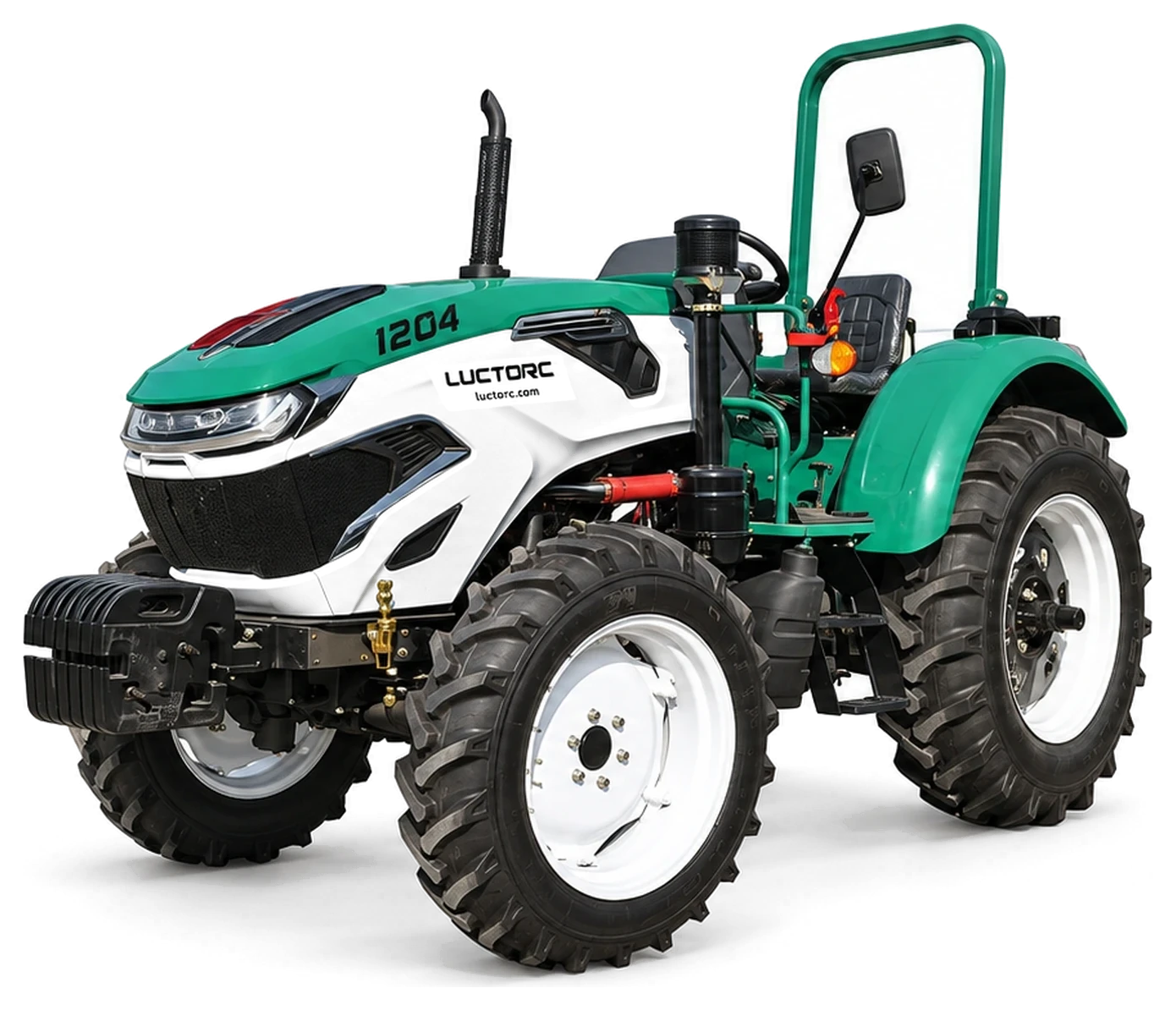

Specifications for the 1204 Open Station Wheeled Tractor
Rated power	88.2 kW
Engine model	Weifang 4102, turbocharged / intercooled
Rated engine speed	2400 rpm
Fuel	Diesel
Overall length	3.90 m
Overall width	1.90 m (adjustable)
Overall height	2.20 m
Front wheel spacing	1.40 m
Rear wheel spacing	1.40–1.70 m (adjustable)
Wheelbase	2.10 m
Ground clearance	400 mm
Machine mass	2,800 kg
Tyres – front / rear	9.5-24 / 14.9-30
Optional tyres	Not specified
Steering system	Hydraulic steering
Clutch system	11 in dual-acting

Confirmed at quotation

Details confirmed on the quotation
Voltage and frequency	Set to your market at order
Packing	Export crate dimensions and gross weight
Container loading	Machines per 20 ft / 40 ft container
Lead time	From deposit to shipment
Spare and wear parts	First set quoted with the machine

No price is published on this site. The machine, its die or wrapping specification, the parts included and the shipping arrangement decide the figure, so every model is quoted in writing on inquiry.

Ordering

What a quotation for the 1204 Open Station covers

Machinery bought across a border is bought on the paperwork. All three are stated in writing before you commit to anything.

1

Specification

Installed power and voltage, bale size and weight, output, machine weight and overall dimensions. Anything shown here as on request is confirmed at this point, not left open.

2

Packing and shipping

Packing method, crate dimensions and gross weight, machines per container, port of loading, and the lead time from deposit to shipment.

3

Terms

Price validity, payment terms, and the wear parts we recommend ordering with the machine.

Working videos, technical sheets and packing photographs for the 1204 Open Station are sent with the quotation.
