Model 500

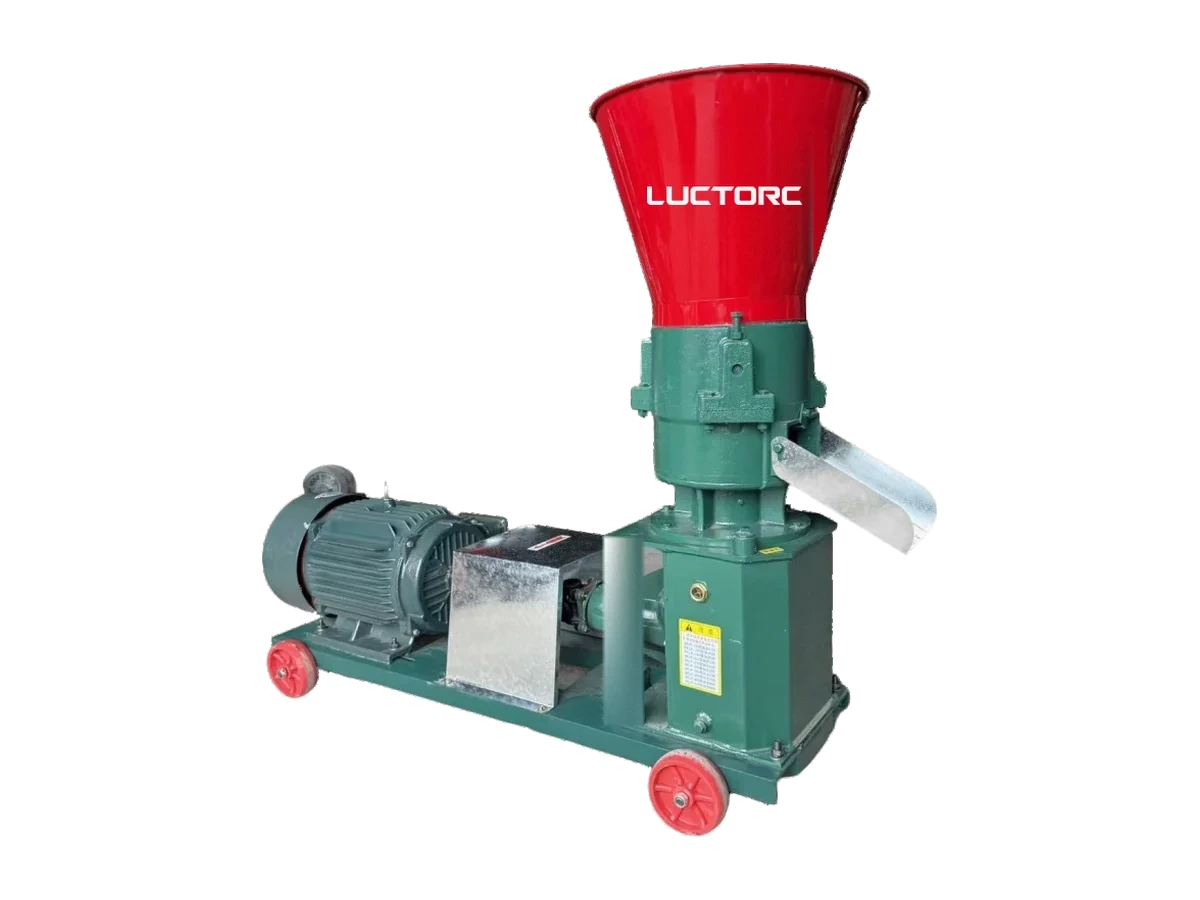

Standard flat-die Model 500

Name: Standard flat-die Model 500
Brand: LUCTORC

Direct flat-die pressing with a differential and universal-joint transmission. Replaceable die plates give a 2–8 mm pellet; listed feedstocks include corn, soybean meal, straw, grass and distiller’s grains.

Power drive

Electric

Specifications

Specifications for Standard flat-die Model 500
Production	2,000–3,000 kg/h
Power	55 kW
Machine weight	1,200 kg
Overall size	1900 × 760 × 1900 mm
Crate dimensions	1900 × 760 × 1900 mm
Voltage	380 V

Request a quote WhatsApp

Quoted on inquiry, with the full specification in writing.
Stock arrives from the factory at our 2000 Plaza, Mombasa Road showroom, where you can see and test it before delivery is arranged.
Wear parts — film, blades, belts, rollers and dies — supplied for the life of the machine.

Ask for the Model 500 technical sheet and working video

Ordering

What a quotation for the Model 500 covers

Machinery bought across a border is bought on the paperwork. All three are stated in writing before you commit to anything.

Specification

Installed power and voltage, pellet diameter and die specification, output, machine weight and overall dimensions. Anything shown here as on request is confirmed at this point, not left open.

Packing and shipping

Packing method, crate dimensions and gross weight, machines per container, port of loading, and the lead time from deposit to shipment.

Terms

Price validity, payment terms, and the wear parts we recommend ordering with the machine.

Working videos, technical sheets and packing photographs for the Model 500 are sent with the quotation.

Request a quote

Also in this line

Other Pellet Machine models

Same figures in the same order on every card.

Model 150

Electric

Production	50–100 kg/h
Installed power	3 kW
Machine weight	85 kg
Models	On request

Model 160

Electric

Production	75–150 kg/h
Installed power	4.5 kW
Machine weight	92 kg
Models	On request

Model 180

Electric

Production	75–150 kg/h
Installed power	4.5 kW
Machine weight	92 kg
Models	On request

Model 210

Electric

Production	150–300 kg/h
Installed power	7.5 kW
Machine weight	180 kg
Models	On request

Model 230

Electric

Production	200–400 kg/h
Installed power	11 kW
Machine weight	210 kg
Models	On request

Model 260

Electric

Production	300–500 kg/h
Installed power	15 kW
Machine weight	290 kg
Models	On request

Model 300

Electric

Production	800–1,000 kg/h
Installed power	22 kW
Machine weight	410 kg
Models	On request

Model 400

Electric

Production	1,000–2,000 kg/h
Installed power	37 kW
Machine weight	850 kg
Models	On request
