Chaff Cutter High Discharge · 9Z Series Chaff Cutters

9Z-10T

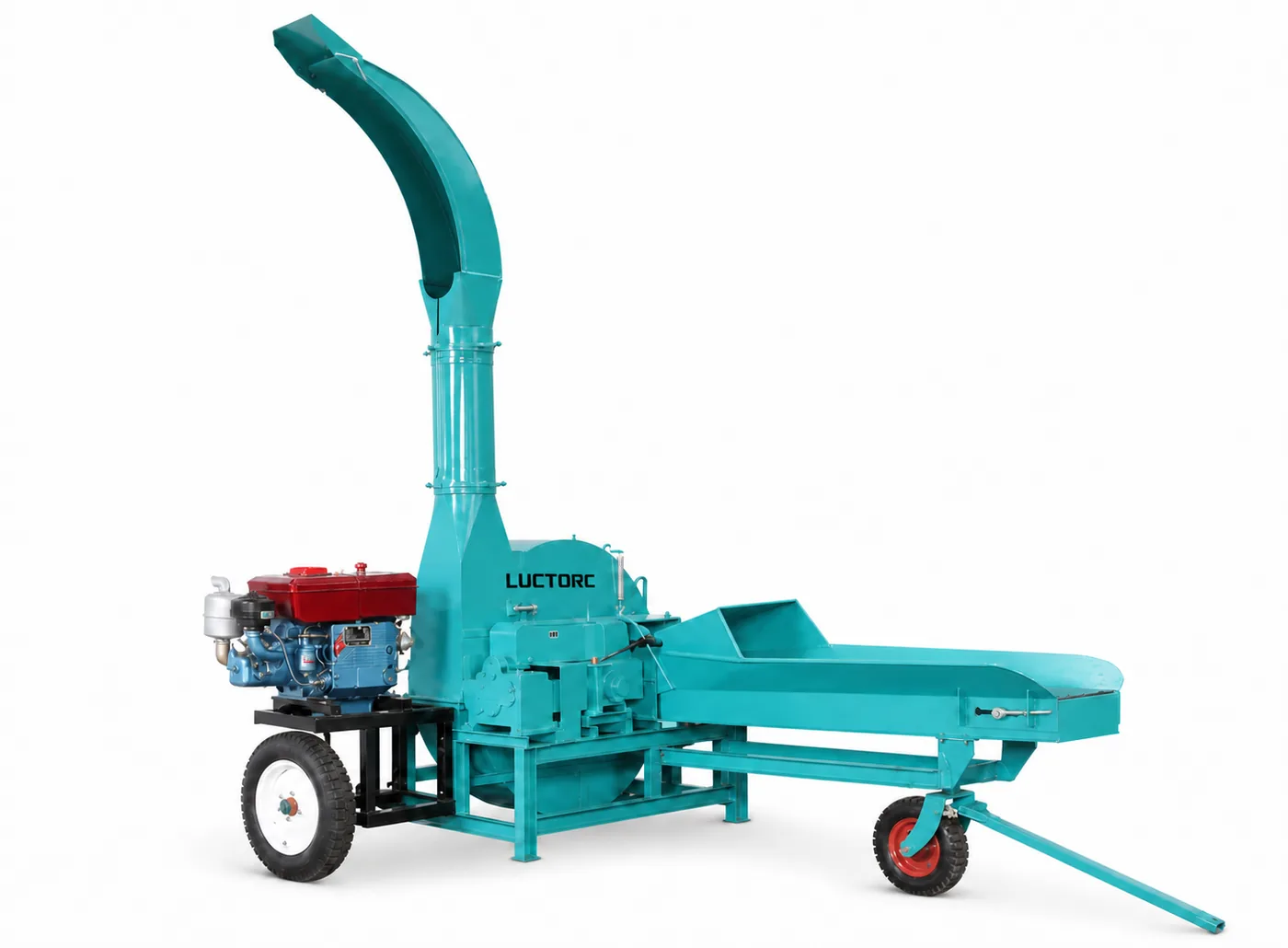

9Z-10T Chaff Cutter

Name: 9Z-10T Chaff Cutter
Brand: LUCTORC

Chaff Cutter

The largest machine in the chaff cutter range, built for high-volume feed preparation with a wide conveyor, heavy-duty frame and multiple power configurations.

High discharge · Largest model · 10 t/h

Available with

Electric Diesel PTO

Choose your power drive when you request a quote — it changes the machine and the price.

Discharge: High discharge
Rated output: Up to 10 t/h
Motor power: 18.5–22 kW

Request a quote WhatsApp

Quoted on inquiry, with the full specification in writing.
Stock arrives from the factory at our 2000 Plaza, Mombasa Road showroom, where you can see and test it before delivery is arranged.
Wear parts — film, blades, belts, rollers and dies — supplied for the life of the machine.

Ask for the 9Z-10T technical sheet and working video

Technical data

Full specification

Every figure the factory publishes for this model.

9Z-10T — published figures

Specifications for the 9Z-10T Chaff Cutter
Discharge	High discharge
Rated output	Up to 10 t/h
Motor power	18.5–22 kW
Motor speed	Approx. 1,400 rpm
Rated voltage	380 V
Diesel engine	30 hp or higher
Machine weight	850–930 kg
Machine size	2,770 × 2,600 × 4,200 mm
Functions	Chopping; optional chopping and kneading

Confirmed at quotation

Details confirmed on the quotation
Voltage and frequency	Set to your market at order
Packing	Export crate dimensions and gross weight
Container loading	Machines per 20 ft / 40 ft container
Lead time	From deposit to shipment
Spare and wear parts	First set quoted with the machine

No price is published on this site. The machine, its die or wrapping specification, the parts included and the shipping arrangement decide the figure, so every model is quoted in writing on inquiry.

Configurations

How the 9Z-10T can be ordered

Gearbox, drive and function are chosen at order, and they are what move the machine weight and the power requirement. Tell us the power available at the working position and we will confirm which of these fits.

9Z-10T — available configurations

Single-gearbox electric version
Dual-gearbox electric version
Tractor PTO-driven version
Electric + diesel + PTO three-drive version
Chaff-only configuration
Combined chaff cutting and kneading configuration

Ordering

What a quotation for the 9Z-10T covers

Machinery bought across a border is bought on the paperwork. All three are stated in writing before you commit to anything.

Specification

Installed power and voltage, bale size and weight, output, machine weight and overall dimensions. Anything shown here as on request is confirmed at this point, not left open.

Packing and shipping

Packing method, crate dimensions and gross weight, machines per container, port of loading, and the lead time from deposit to shipment.

Terms

Price validity, payment terms, and the wear parts we recommend ordering with the machine.

Working videos, technical sheets and packing photographs for the 9Z-10T are sent with the quotation.

Request a quote

Also in this line

Other Chaff Cutter models

Same figures in the same order on every card.

3.8 t/h

ElectricDiesel

Discharge	Low discharge
Output	3.8 t/h
Motor power	3–4 kW
Diesel engine	4–6 hp
Machine weight	On request

9Z-4.5T

ElectricDieselPTO

Discharge	High discharge
Output	Up to 4.5 t/h
Motor power	5.5–7.5 kW
Diesel engine	15–18 hp
Machine weight	300–330 kg

9Z-5.5T

ElectricDieselPTO

Discharge	High discharge
Output	Up to 5.5 t/h
Motor power	7.5 kW
Diesel engine	18–20 hp
Machine weight	350–370 kg

5.8 t/h

ElectricDiesel

Discharge	Low discharge
Output	5.8 t/h
Motor power	4.5 kW
Diesel engine	8–10 hp
Machine weight	On request

9Z-6.5T

ElectricDieselPTO

Discharge	High discharge
Output	Up to 6.5 t/h
Motor power	7.5–11 kW
Diesel engine	20–25 hp
Machine weight	420–450 kg

7 t/h

ElectricDiesel

Discharge	Low discharge
Output	7 t/h
Motor power	7.5 kW
Diesel engine	12–15 hp
Machine weight	On request

9Z-8T

ElectricDieselPTO

Discharge	High discharge
Output	Up to 8 t/h
Motor power	11–15 kW
Diesel engine	25–30 hp
Machine weight	Approx. 600 kg

10 t/h

ElectricDiesel

Discharge	Low discharge
Output	10 t/h
Motor power	7.5 kW
Diesel engine	12–15 hp
Machine weight	On request

15 t/h

ElectricDiesel

Discharge	Low discharge
Output	15 t/h
Motor power	7.5 kW
Diesel engine	12–16 hp
Machine weight	On request
